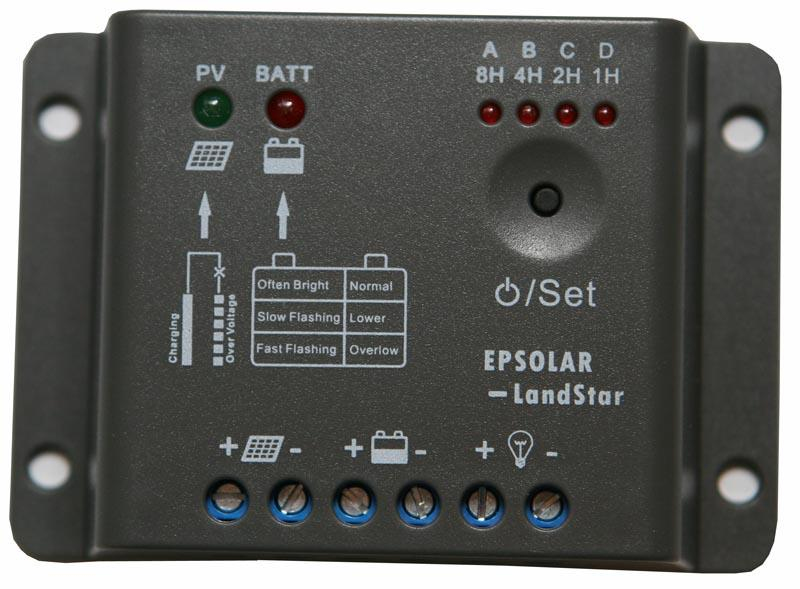

LS0512R

Model No:LS0512RMaksimum Güç:5ABoyutlar(mm):97x66x25 (mm)Ağırlık:0,05 kg Electrical parametersLS0512RNominal System Voltage12VDCRated Battery Current5AMax. Battery Voltage16VCharge Circuit Voltage Drop≤0.26VDischarge Circuit Voltage Drop≤0.15VSelf-consumption≤6mAOverall dimension97 x 66x 25mmTerminal2.5mm2Net weight0.05kgWorking temperature-35? to +55?Humidity10%-90% NCEnclosureIP30 Battery Voltage Parameters (temperature at 25?)Battery charging settingSealedEqualize Charging Voltage14.6VBoost Charging Voltage14.4VFloat Charging Voltage13.8VLow Voltage Reconnect Voltage12.6VLow Voltage Disconnect Voltage11.1VEqualize Duration2 hoursBoost Duration2 hoursFeatures? ·High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance. ·Use MOSFET as electronic switch, without any mechanical switch ·Widely used, automatically recognize day/night. ·Only one key solve all setting simply ·Intelligent timer function with 1-12 hours option ·Adopt temperature compensation, correct the charging and discharging parameters automatically and improve the battery lifetime.Electronic protection: ·over charging ·over discharging ·overload ·short circuit ·Reverse protection for battery
